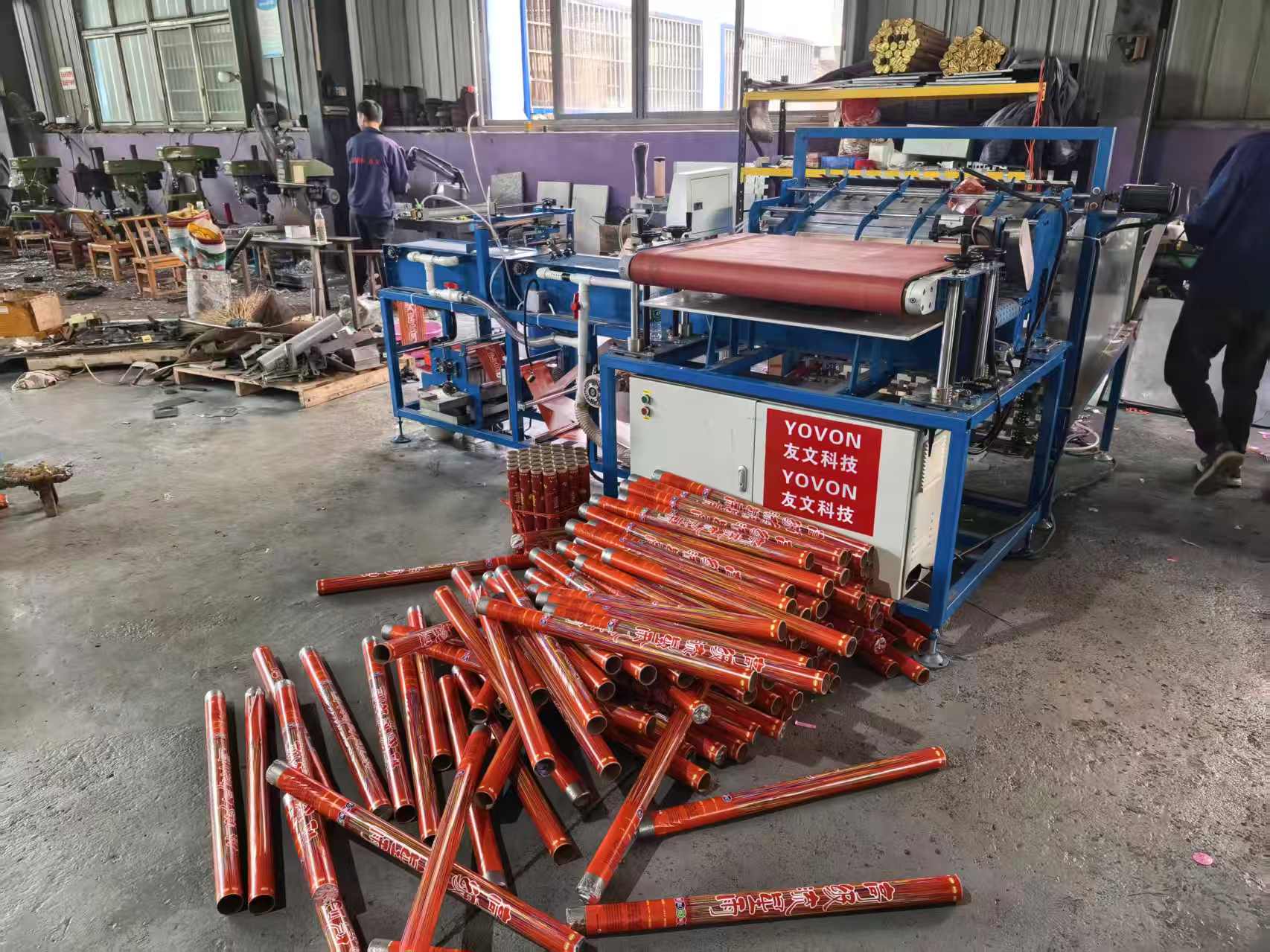

confetti party popper  paper tube parallel rolling cs-9 1200mm machine
NO.：1
Catalog：A set of confetti party popper making machine
Specifications：tube length 1200mm
Contain：tube ID 45mm
Describe：YOVON PAPER TUBE ROLLING MACHINE CS-9 TYPE TUBE MAKING MACHINE (FULL-AUTO) 1. DETAIL MESSAGE: full-auto paper tube making machine for fireworks. it can roll (full-auto) glue and cut tube and drop out tube on one machine. It needn’t pump. The machine is used for producing parallel paper tube and then cut it into short tubes automatically. It consists of paper stand, gluing device (automatic cycle system with diaphragm pump), auto-water-adding system, paper cutting device, tube forming, tube-cutting and discharging device. The machine is equipped PLC screen and step motor send paper with machine. 2. TECHNICAL PARAMETERS Technical parameters CS-9 A type Number of roll paper 3-10 layer Tube ID 30mm -75 mm tube thickness 1-6 mm Applicable paper gram 180-380gsm Max. Paper tube length 1200mm Roll core mold fixed Three claws chuck Winding head 2 rolls of belts Cutting tube mode Single circular knife cutting Glue way Single sides operation 1 person Paper delivery speed 15-20 sheets/min Speed control transducer Applicable glue white glue/Tapioca starch glue Input power 6*1.1KW/380V/50HZ/3phases weight 1000 kg Main frame size 2200×2500×1400mm

pulling frecrackers products
NO.：
Catalog：pulling firecrackers machine
Specifications：
Contain：
Describe：

Yovon Pure Motor Fireworks Paper Tube Rolling Speed Machine CS-12-B1 Type
NO.：
Catalog：Fireworks paper tube making machine
Specifications：
Contain：
Describe：
Technical parameters CS-12-B type
Number of roll paper 3-15 layer
Tube ID 8.5-25 mm
tube thickness 1-5mm
Applicable paper gram 180-250gsm
Max. Paper tube length 620mm* max feed into paper 1300mm
Roll core mold fixed Three claws chuck
Winding head 2 rolls of belts
Cutting mode Single circular knife cutting
Glue way Single sides
operation 1 person
Paper delivery speed 30-35 sheets/min
Speed control transducer
Applicable glue white glue/Tapioca starch glue
Input Total power 8.5kw/ 380V 50HZ
Working no air pressure 1 Variable-speed motor,0.75kw
2 servo motor,1.5kw
6 servo motor,0.75kw
weight 1400 kg
Main frame size 2800*2760*1560mm

auto dry wet green fuse chemical powder machine
NO.：
Catalog：
Specifications：
Contain：
Describe：

new type paper 图呗
NO.：
Catalog：
Specifications：
Contain：
Describe：

new type paper 图呗
NO.：
Catalog：
Specifications：
Contain：
Describe：
